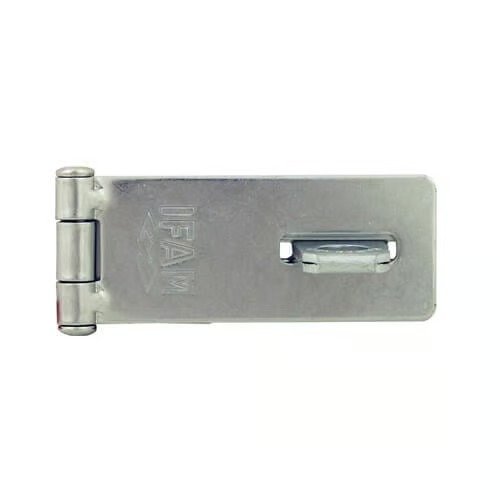

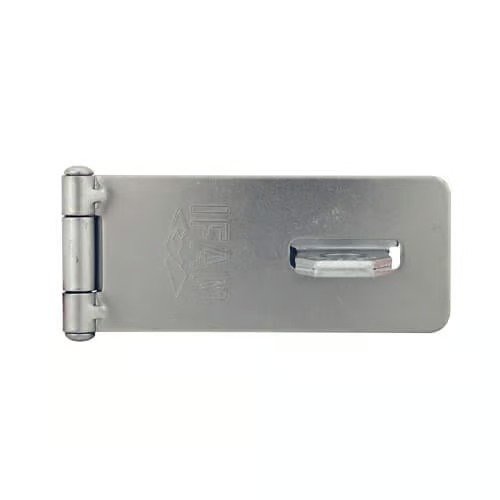

Ifam PC Series Safety Hasp & Staple Zinc Plated

Compare

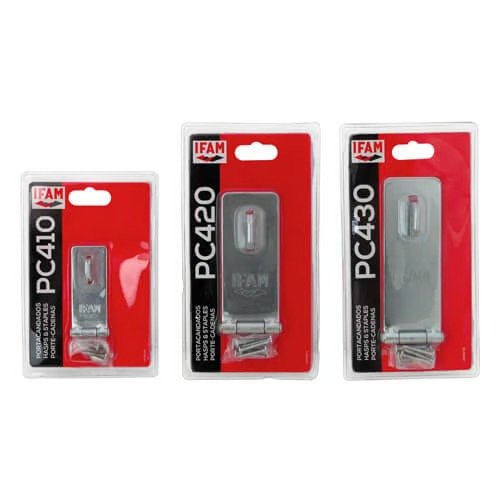

The PC Series hasps and staples from IFAM are available in three different sizes. Easy assembling and versatility are the strongpoints of these hasps and staples, which allow attaching padlocks with shackles measuring between 11-12 millimetres in diameter; in otherwords, padlocks with a high level of security.

Price range: £3.68 through £8.44

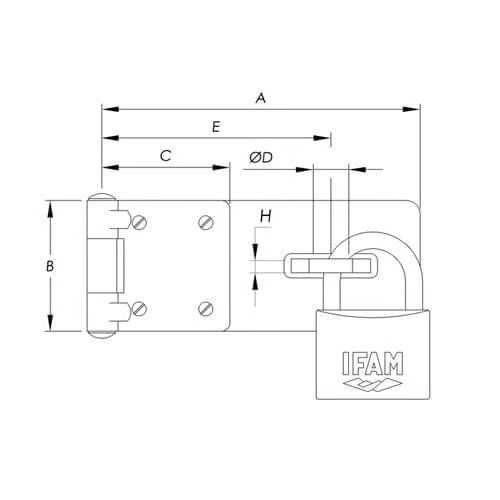

Product description IF00410 IF00420 IF00430
Body length (from the axis to the hinge) (A): 73mm 112mm 131mm
Body height (B): 29mm 47mm 47mm
Bracket length (C): 28mm 45mm 45mm
Diameter of the ringhole (D): 9.5mm 13mm 13mm
Distance from the hingeaxis to the axis of the ring (E): 53mm 81mm 100mm
  • Suitable for padlocks with up to 12mm shackle
  • Made of stamped steel
  • Hardened steel fastening ring
  • 3 body sizes
  • Fixings not supplied
  • Hidden screws when hasp is closed
SKU: N/A Categories: , Brand:
Length

73mm, 112mm, 131mm
Height

29mm, 47mm
Shackle Eye Diameter

9.5mm, 13mm
