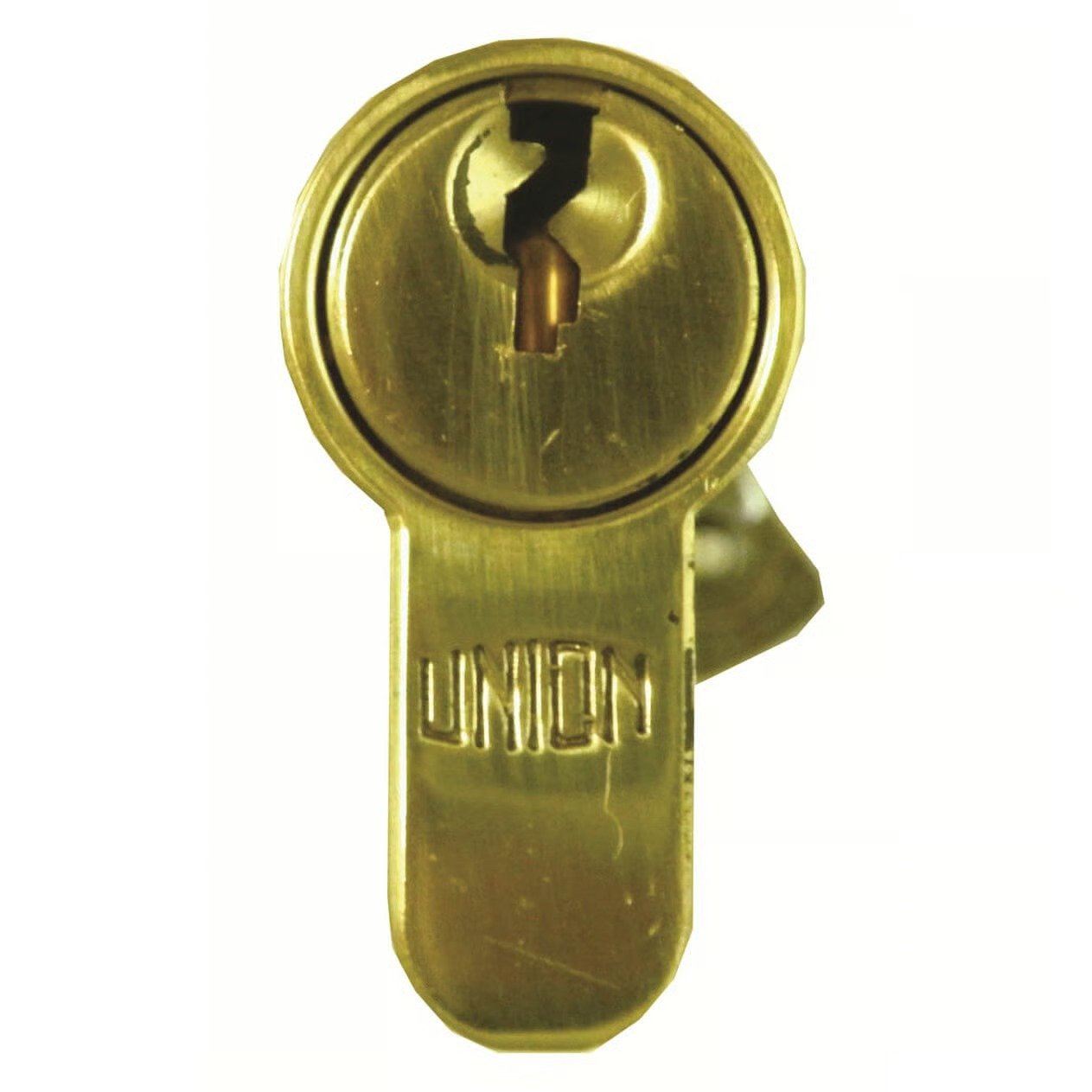

Union Euro Single Cylinders

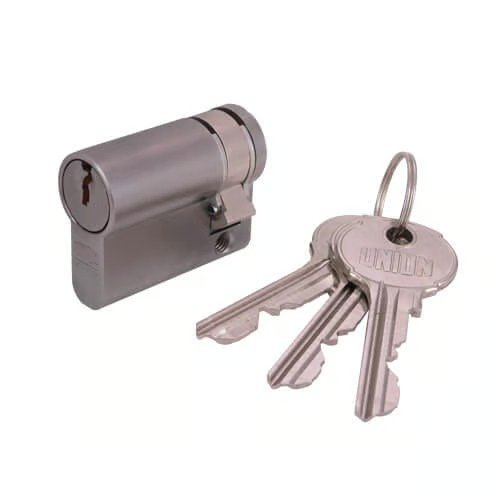

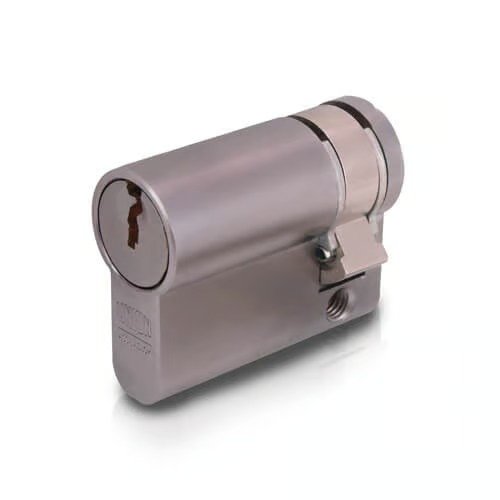

This is the VERSA Lite Euro Single Cylinder using an open profile to allow keys to be cut easily.

It comes with an adjustable cam as standard so it can be fitted to euro body padlocks and panic hardware.

Quality 6 pin mechanism with a dual finish and sacrificial breakpoints on both sides which halves the number of cylinders you need to hold in stock. It also has anti-drill and anti-pick pins, making the cylinder robust and very secure.

They come with 3 keys as standard and the cylinders can be keyed alike in-house.

N.B the 5 pin (sizes less than 35mm) are not compatible with 6 pin (Sizes greater than 35mm) when keying alike.

This is the VERSA 1* Euro cylinder.

A quality British standard, TS007 and SBD tested and approved cylinder, designed with sacrificial break points on both sides to limit the amount of stock you need to carry around topped with the all-important anti-bump feature. This cylinder has a fire rating of 30-60 minutes and is qualified for protecting Timber doors against EN1634-1:2014+A1:2018.

The VERSA 1* boasts Secured by Design, British Kitemarked TS007:2014 +A2: 2018 1 Star security and British Standards BS EN1303:2015

You no longer need to stock both brass and satin for insurance-approved cylinders as the VERSA 1* comes with its signature dual finish – a nickel plate body and a satin brass inner core! A remedy proven to save money by limiting the stock you need to carry and it’s also supplied with 5 keys.

This 1* cylinder has been tested to at least 100,000 cycles, has 547 Effective differs and has a 10-year mechanical guarantee. This is a Patented design until at least 2036!

The doubles have sacrificial break points on both sides for uneven sizes, half euros come with an adjustable cam, the thumb turns have our popular peanut knob design and all locks come with a 50mm retaining screw but longer screws are available separately if needed.

This is the ISEO Euro Single Cylinder using a 5-pin open profile* to allow keys to be cut easily but is resistant to manipulation.

It has an adjustable cam as standard so can be fitted to euro body padlocks and panic hardware. (Please be aware that part number I092510N does not have an adjustable cam).

This cylinder is also EN 1303 tested and FD60 fire rated. Iseo cylinders are high-quality premium cylinders made in Italy.

Their construction makes them perfect for keying alike and master keying where an open profile is required.

*Due to the size of the 25/25 50mm cylinders they are 4-pin and are not compatible with the 5-pin versions. They are, however, still anti-pick.
